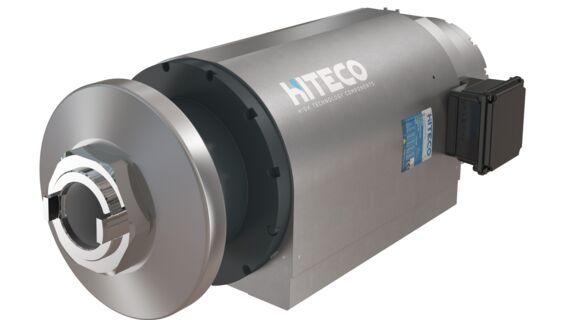

SXL-350 I50
Electrospindle for stone, granite and gres porcelain tile processing with high-speed asynchronous motor. Ideal for cutting, drilling and CNC milling. Compact design to be installed on CNC milling machines, 5-axes machines and robots.
- Tools holder available: ISO 50 DIN
- Max speed 8000 RPM. With ceramic ball bearings option 10000 RPM
- Min distance reduced between spindle axis and support surface for blades use: 131 mm
- Assembly on housing sides through interface flanges
- Shaft index through encoder TTL
- Liquid cooling through heat exchanger
- Hollow shaft for water coolant by Hiteco rotary joint
- Main components in INOX steel
- Integrated 1Vpp or TTL encoder (opt.)
- Joint Monitoring Sensor (opt.)
Layout
![](/website/var/tmp/image-thumbnails/150000/156112/thumb__productLayout/sxl.JPG@2x.jpeg)
Technische Daten
Specifications | ||
Max power S1/S6 | kW | 35/40 |
Nominal power | rpm | 1400 |
Max rotation speed | rpm | 8000 |
Max torque S1/S6 | Nm | 239/273 |
Current S1/S6 | A | 72/86 |
Type of electrospindle | Asynchronous 6 Poles | |
Weight | kg | 180 |
Equipment | ||
Tool taper | ISO50 | |
Type of tool changer | Automatic | |
Cooling | Liquid | |
Sensors |
S1 (Tool grip) S2 (Collect open) S3 (Spindle rotation) S5 (Piston back) |
|
Release cylinder | Double Effect Pneumatic Cylinder | |
Other specifications |
Pressurised labyrinth |
Optional |
iM Smart Sensor |
Increased max speed (from 8000 rpm to 10000 rpm) |
