MX-2 41/4.5 24 63A
- Suitable for machining metal, aluminum and light alloys
- Power up to 42 kW and high torques up to 67 Nm
- Front bearings cooling circuit
- Available with encoder on board, air tool, mql, oil mist and cts
- Synchronous spindles with HSK 63A and encoder on board

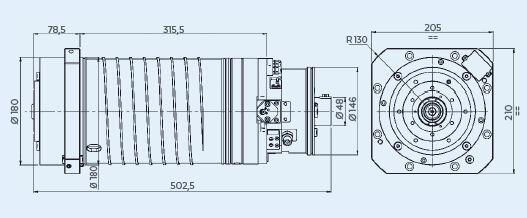

Layout
Performance
Technical data
Specifications | ||
Max power S1/S6 | kW | 41/47 |
Nominal power | rpm | 4.500 |
Max rotation speed | rpm | 24000 |
Max torque S1/S6 | Nm | 87/100 |
Type of electrospindle | Synchronous 4 Poles | |
Weight | kg |
70 |
Equipment | ||
Tool taper | HSK63A | |
Type of tool changer | Automatic | |
Bearings | Ceramic - grease lubrication for life | |
Cooling | Liquid | |
Sensors |
S1 (Tool grip) S5 |
|
Release cylinder | Idraulic double-effect | |
Other specifications |
Encoder 1 Vpp | |
Pressurised labyrinth |
Optional |
Axial shaft displacemen sensor |
Ball bearings oil lubricant (24.000 rpm) |
