TF.A.5V.0H.0B.A
- Spindle shafts with diameter Ø 20mm
- Weldon-type tool taper
- Rotation speed up to 8000 RPM

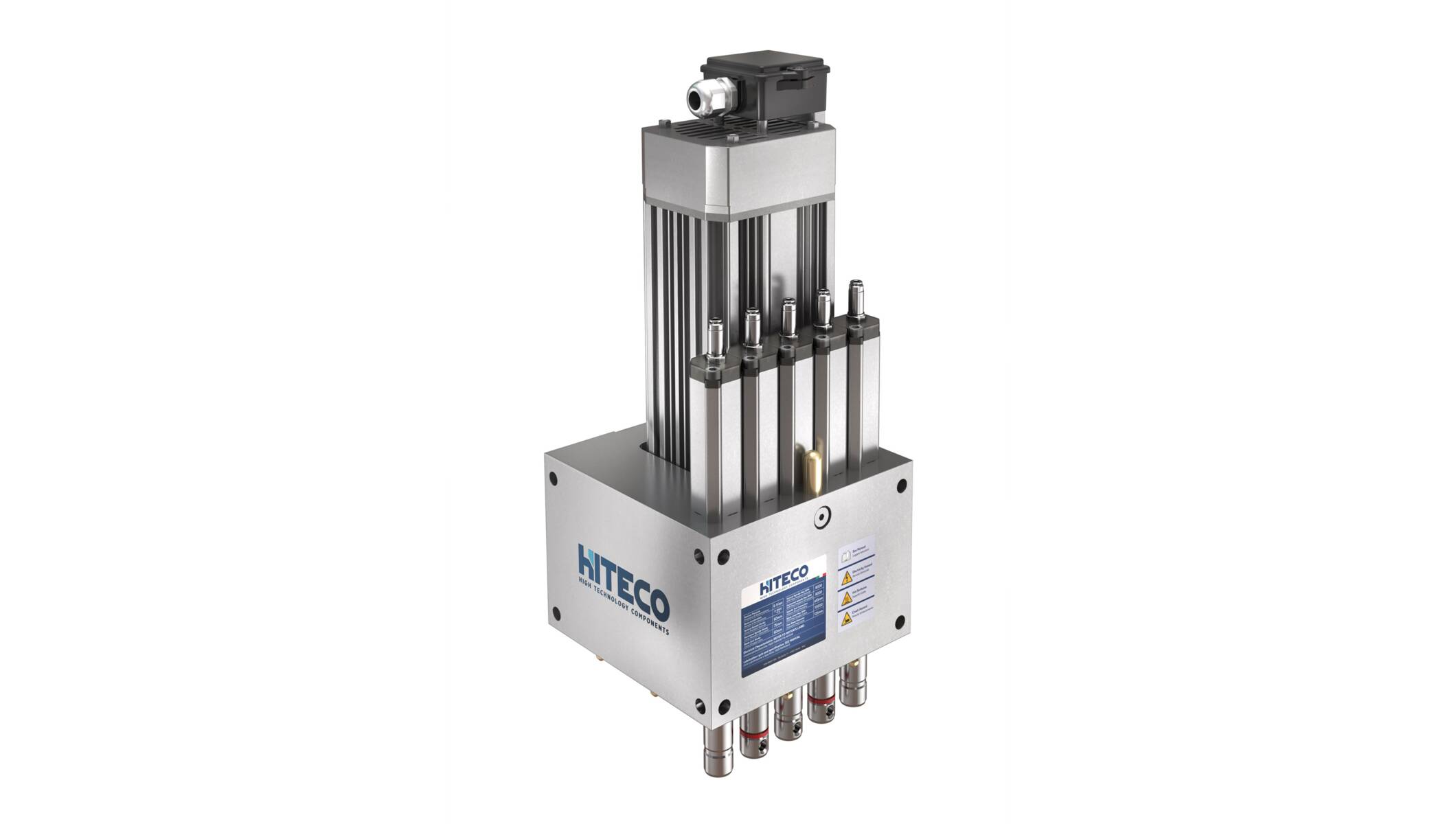

Layout
![](/website/var/tmp/image-thumbnails/50000/51385/thumb__productLayout/tfa5v00a@2x.png)
Technical data
Technical specifications | ||
Number of vertical spindles | 5 | |
Tool taper | 10 H7 mm | |
Tool interaxis | 32 mm | |
Max tool lenght | 70 mm | |
Vertical spindles stroke | 60 mm (opt. 75 mm) | |
Motor power | 1.5 kW | |
Max vertical rotation | 8000 rpm | |
Weight | 25 kg |
