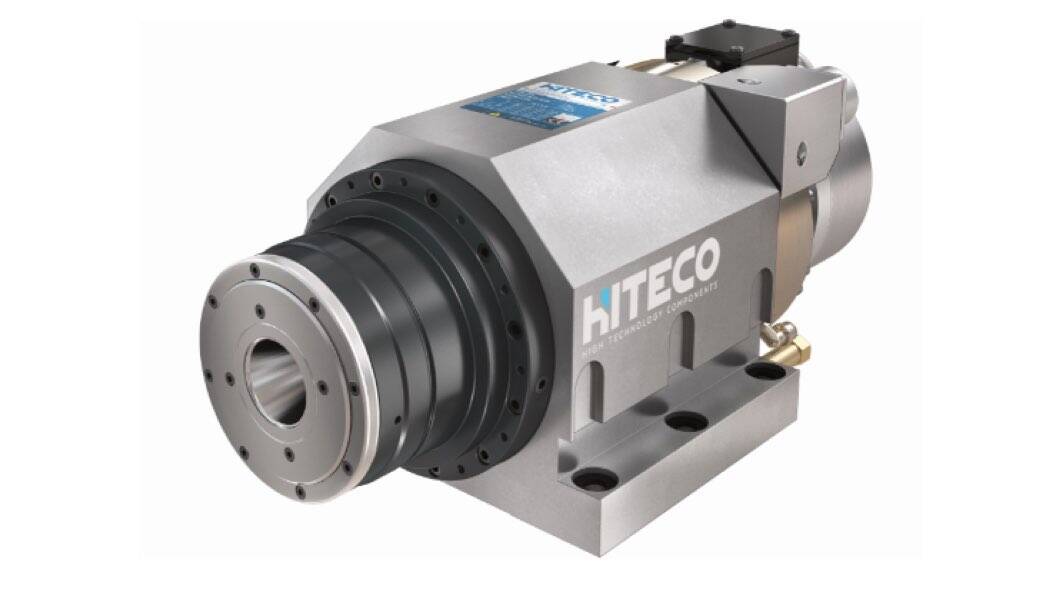

MG-2 13.5/6 15 I40

  • 适合玻璃和大理石加工
  • 高扭矩密度
  • 功率范围大,最高至30 kW
  • 可提供刀具锥柄吹气和CTS
Advantages

同一个主轴壳体可使用三种不同的功率

整个主轴采用不锈钢制造

供货包含外壳

SIMPLIFIED MACHINE INTEGRATION
Hydraulic release cylinder

Layout
Performance
Technical data
技术规格
最大功率 S1/S6 kW 13.6/21
弯管 rpm 6000
最大旋转速度 rpm 15000
最大扭矩 S1/S6 Nm 22.6/34.9
电流 S1/S6 A 32/34.9
电压 V 380
电主轴类型 4异步,带变频器
重量 kg 90



配置
刀具接口 ISO40
换刀类型 自动
轴承 陶瓷 - 永久润滑
冷却 液体

传感器

S1 (刀具夹紧)
  S2 (夹钳打开)

释放缸
单动液压

其他特性

加压迷宫
锥柄吹气



可选
Air Tool
CTS润滑
油雾/MQL
Configuration
MG-2 13.5/6 15 ISO40 NC
Technical sheet Download
Layout Download
